BIOLABO Biochemistry analysers - KENZA range
KENZA MAX BioChemisTry PHOTOMETER. Compact and convenient. Your complete work-station for routine biochemistry tests
KENZA MAX BioChemisTry PHOTOMETER. Compact & Convenient. Your complete working station for routine biochemistry.
One of the best-selling models in the world, many systems still running 10 years after their installation.
Integrated 9-positions incubator and 18 µL flow cell, very useful for medium series.
Storage hole for the flow cell : allow the reading on disposable cuvettes.
Open System.
Storage of calibration factors and reagent-blank values.

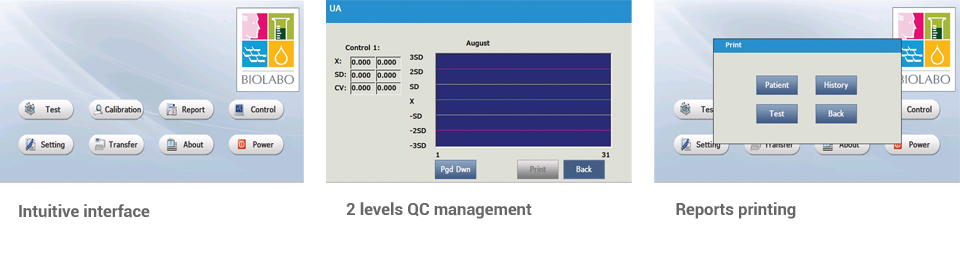

Storage of 30 QC values (on 2 levels for 30 analysis), means calculation, standard deviation, C.V.’s and printing of Levey-Jennings diagrams.
Built-in graphic printer : Different printing formats for results (with headlines, reference values, settings of parameter, etc…).
Printing of reaction curves (for kinetic methods) or calibration curves (multistandard methods).
Printing of report by ID and name of the patient (standard keyboard connection not supplied).
Key strengths:
• Easy to use photometer
• 120 programmable methods (Absorbance, End-Point, Kinetic, 2 Points Kinetic, Multistandard)
• Built-in printer
• 9 Positions incubators
• Fully Open system
• Robust
• Tutorial available for quick start of the analyser
Main features KENZA MAX BioChemisTry:
• Flow cell 18 µL
• Minimum volume per test : 500 µL
• Operating procedures : Absorbance, End-Point, Kinetic, 2 Points Kinetic, Multistandard
• Wavelengths: 8 interferential filters: 340, 380, 405, 505, 546, 578 et 630 nm, + 1 free position
• Measuring range : from -200 to +2500 mAbs
• Photometric accuracy : CV < 1µ to 2000 mAbs
• Photometric linearity : ± 1%
• Reproductibility : ± 1% de 0 à 2000 mAbs
• Incubator : 9 positions, from 20 to 40 °C
• Printer: 24 columns built-in graphic printer
• Power supply: 220 V, 50 Hz, or 110 V, 60 Hz
• Dimensions and Gross weight: 47 x 46 x 35 CM – 9.2 KG
KENZA MAX BioChemisTry Technical service
• Documentation: Manuels, Applications, Tutoriels, etc… Analysers Support
• Technical Question: Contact Support
Automated biochemistry Analyser. Smart and compact.
100 tests per hour : Small to medium laboratories
NEW: Close System (fully barcoded for samples and positive identification for reagents and samples) or Open System (using BIOLABO reagents or any other brand)
NEW: Innovative LED Sample Management System: 12 sample positions always available
NEW: Very Intuitive and easy-to-use interface
NEW: 1st Analyser fully developed by the 3 companies of the BIOLABO GROUP
Quick development of your applications by our engineers : Contact us
KENZA ONE detailed specifications
KENZA ONE main features:
• Up to 100 tests per hour
• Fully barcoded solution integrated (Reagents + Samples)
• Internal and external needle cleaning system
• Incompatibilities management
• STAT management: at any position, at any time
• Bench Top system: Compact and convenient
• Tray of 50 reusable cuvettes
• Very low water consumption: < 2 L per hour in maximal use
• Easy and cost effective maintenances
• Highest flexibility: No start & stop procedure, available to start at any time, first result in less than 3 minutes
• Refrigerated reagents tray, even when the analyser is turned off
• List of dedicated reagents in barcoded containers
General
– Final Point, Kinetics, Two-point kinetics, Differential, White samples, Multistandards, Bichromatic, Immunoturbidimetry.
– System: Open or closed.
– Bench Top, Random Access.
– 100 tests per hour.
– Quick start, No start or stop procedure.
– Bi-directional LIS communication protocol (xml, CSV, Real-time, etc.).
Samples and reagents
– 23 reactive positions (20 refrigerated).
– 12 sample positions with LSM (LED Sample Management) device.
– Primary tubes or wells.
– STAT Management: All positions, at any time.
– Continuous loading, opening possible at any time.
– Reagent and samples level detector.
– Refrigerated reagent tray, same device switched off.
– Integrated barcode reader (positive identification).
– Full range of barcode and dedicated reagents.
Sampling system
– Internal and external needle washing system, Permanent washing.
– Management of incompatibilities (4 levels).
– Sample volume: 2-100 µL.
– Reactive Volume: 2-350 µL.
– Reaction Volume: 220-350 µL.
Reaction part
– 50 long-lasting cuvettes.
– Thermostatic reaction plate: 37.0°C -0.0°C/+0.5°C.
– Long-life halogen lamp.
– 9 interference filters: 340, 380, 405, 450, 505, 546, 570, 620, 700 nm.
– Automatic washing station.
– Low water consumption (< 2 L / heure en utilisation maximale).
Quality Control
– Control card (Levey-Jennings).
– Automatic verification of Westgard rules.
Analysis ranges
– Digestive and Hepatic Assessment: AST, ALT, LDH, PAL, Bilirubin, GGT, Glucose, Amylase.
– Lipid Balance: Cholesterol, Triglycerides, HDL-CHOLESTEROL, LDL-CHOLESTEROL.
– Martial Assessment: Iron, Transferrin, Transferrin, UIBC, CIBT.
– Renal Assessment: Urea, Creatinine, Calcium, Phosphorus, Proteins, Albumin.
– Cardiac enzymes: CK-NAC, CK-MB.
– Others: Alcohol, Ammonia, Bicarbonates, G6-PDH, Hemoglobin, Lipase, Magnesium, Urinary Proteins, HbA1c, RF, ASLO, CRP, µAbl…
– See more
Software
– New interface.
– New graphic charter.
– Optimized for touch screen.
– Easy to use and ergonomic.
– Intuitive and Interactive.
– Easy access to information.
– Multilingual (French, English, Italian, etc…).
KENZA ONE Technical service
• Documentation: Manuels, Applications, Tutoriels, etc… Analysers Support
• Technical Question: Contact Support
KENZA 240 TX
KENZA 240 TX / KENZA 240 ISE Automated biochemistry analyser. Compact & Convenient.
The KENZA 240 TX offers a real throughput of 240 tests per hour and is one of the analysers starting the fastest.
Its new barcode reader technology (video-camera) and its new range of dedicated reagents in barcoded containers makes it a fully automated solution.
The KENZA 240 TX is perfectly adapted to easily connect your LIS.
Thanks to its refrigerated system, reagents can stay onboard 24/24h and 7/7d.
With complete performances folders, based on the CLSI protocol, the KENZA 240 TX answers all international regulatory requirements.
An independent ISE Module is available in option (+480 tests per hour), means a total of 720 tests per hour.
CONTACT BPC BioSed
• Commercial Request ? Please Contact-us
Main features KENZA 240 TX / KENZA 240 ISE
• 240 tests per hour for routine (+480 tests per hour with ISE Module)
• Fully barcoded solution (reagents + samples) – Optional
• Internal and external washing system for the needle
• Incompatibilities management
• STAT Management : on any position, at any time
• Bench-top System : Compact and convenient
• 50 reusable cuvettes tray
• Very low water consumption : < 2 L per hour in maximal use
• Easy and cost-saving maintenance
• Maximal flexibility : no start & stop procedure, available to start at any time, first result in less than 2 minutes
• Refrigerated reagents tray, even when the analyser is turned off
• Optic fibre technology
• Calibrators & controls management : Levey-Jennings, Westgard rules, etc..
• List of dedicated reagents in barcoded containers
KENZA 240 TX / KENZA 240 ISE Technical service
• Documentation: Manuels, Applications, Tutoriels, etc… Analysers Support
• Technical Question: Contact Support
KENZA 240 TX / KENZA 240 ISE detailed specifications
General
– 240 tests per hour.
– Final Point, Kinetics, Two-point kinetics, Differential, White samples, Multistandards, Bichromatic, Immunoturbidimetry.
– Open System.
– Bench Top, Random Access.
– Optional ISE module: Na, K, Cl, Li (+480 tests / hour).
– Quick start, No start or stop procedure.
– Always ready to go.
– 1st result in less than 2 minutes.
– Bi-directional LIS communication protocol (xml, CSV, Real-time, etc.).
Samples and reagents
– 60 independent refrigerated reagent positions.
– 50 sample positions, controls and calibrators.
– Primary tubes or wells.
– STAT Management: All positions, at any time.
– Continuous loading, opening possible at any time.
– Reagent and samples level detector.
– Refrigerated reagent tray, same device switched off.
– Optional reagent and sample barcode reader.
– Full range of barcode and dedicated reagents.
Sampling system
– Internal and external needle washing system, Permanent washing.
– Management of incompatibilities (4 levels).
– Sample volume: 2-100 µL.
– Reactive Volume: 2-350 µL.
– Reaction Volume: 220-350 µL.
Reaction part
– 50 long-lasting cuvettes.
– Thermostatic reaction plate: 37 ° C to ± 0.5 ° C.
– Long-life halogen lamp.
– 9 interference filters: 340, 380, 405, 450, 505, 546, 570, 620, 700 nm.
– Fiber optic technology.
– Automatic washing station.
– Low water consumption (<2 L / hour at maximum use).
Quality Control
– Control card (Levey-Jennings).
– Automatic verification of Westgard rules.
Analysis ranges
Digestive and Hepatic Assessment: AST, ALT, LDH, PAL, Bilirubin, GGT, Glucose, Amylase.
– Lipid Balance: Cholesterol, Triglycerides, HDL, LDL.
– Martial Assessment: Iron, Transferrin, Transferrin, UIBC, CIBT.
– Renal Assessment: Urea, Creatinine, Calcium, Phosphorus, Proteins, Albumin.
– Cardiac enzymes: CK-NAC, CK-MB.
– Others: Alcohol, Ammonia, Bicarbonates, G6-PDH, Hemoglobin, Lipase, Magnesium, Urinary Proteins, HbA1c, RF, ASLO, CRP, µAbl…
– See more
Software
– Optimized for touch screen.
– Easy to use.
– Intuitive.
– Easy access to information.
– Multilingual (French, English, Italian, etc…).
Dimensions
– Dimensions and Gross Weight: 80 x 75 x 50 CM – 60 KG
KENZA 450 TX
KENZA 450 TX / KENZA 450 ISE Automated Biochemistry Analyser. Compact and Convenient.
The KENZA 450 TX is the fastest analyser of the BIOLABO Group and offers 420 tests per hour (+480 tests with ISE Module).
Thanks to its very low water consumption, the KENZA 450 TX is a cost-effective and economic solution for laboratories.
Its new barcode reader technology (video-camera) and its new range of dedicated reagents in barcoded containers makes it a fully automated solution.
The KENZA 450 TX is perfectly adapted to easily connect your LIS.
Like all the BIOLABO Group analysers, complete performances folders, based on the CLSI protocol, allow the KENZA 450 TX to answer all international regulatory requirements.
CONTACT BPC BioSed
• Commercial Request ? Please Contact-us
KENZA 450 TX / KENZA 450 ISE main features
• 420 tests per hour for routine (+480 tests per hour with ISE Module)
• Fully barcoded solution (reagents + samples) – Optional
• Internal and external washing system for the needle
• Level & shock detector
• Incompatibilities management
• STAT Management : on any position, at any time
• Bench-top System : Compact and convenient
• 50 reusable cuvettes tray
• Very low water consumption : < 3 L per hour in maximal use
• Easy and cost-saving maintenance
• Maximal flexibility : no start & stop procedure, available to start at any time, first result in less than 3 minutes
• Refrigerated reagents tray, even when the analyser is turned off
• Optic fibre technology
• Calibrators & controls management : Levey-Jennings, Westgard rules, etc..
• List of dedicated reagents in barcoded containers
Automated Biochemistry Analyser KENZA 450TX / KENZA 450ISE Leaflet
Technical service KENZA 450 TX / KENZA 450 ISE
• Documentation: Manuels, Applications, Tutoriels, etc… Analysers Support
• Technical Question: Contact Support
Detailed features KENZA 450 TX / KENZA 450 ISE
General
• 420 tests per hour
• End Point, Kinetic, 2 points Kinetic, Differential, Sample blank, Multistandard, Bichromatic, Immunoturbidimetric,
• Open System
• Bench Top, Random Access
• Optional ISE Module : Na, K, Cl, Li (+480 tests per hour)
• Quick Start : No start & stop procedure
• Always ready to start
• 1st result in less than 3 minutes
• Bidirectional LIS Communication (xml, CSV, real time, etc..)
Samples and reagents
• 120 independent refrigerated positions for reagents
• 98 positions for samples, controls and calibrators
• Primary Tubes or cups
• STAT Management : on any position, at any time,
• Level & shock detector for reagents and samples
• Refrigerated reagents tray, even when the analyser is turned off
• Barcode reader for samples and reagents – Optional
• Complete range of dedicated reagents in barcoded containers
Sampling system
• Internal and External washing of the needle, continuous washing
• 2 arms, 3 syringes
• Shock detector
• Incompatibilities management (4 levels)
• Sample Volume : 2-100 µL
• Reagent Volume : 2-350 µL
• Reaction Volume : 220-350 µL
Reaction part
• 50 long life cuvettes
• Thermostatic reagents tray : 37 °C at ± 0.5 °C
• Long life Halogen lamp
• 9 interferential filters: 340, 380, 405, 450, 505, 546, 570, 620, 700 nm.
• Optic Fibre technology
• Automated washing station
• Very low water consumption (< 3 L per hour in maximal use)
Quality Control
• Levey-Jennings Control
• Automated checking of Westgard rules
Analysis ranges
• Digestive and Hepatic Panel : GOT, GPT, LDH, ALP, Bilirubin, GGT, Glucose, Amylase
• Lipidic Panel : Cholesterol, Triglycerides, HDL-CHOLESTEROL, LDL-CHOLESTEROL
• Iron Panel: Iron, Transferrin, UIBC, TIBC
• Kidney Panel : Urea, Creatinine, Calcium, Phosphorus, Proteins, Albumin
• Cardiac Enzymes: CK-NAC, CK-MB
• Others: Alcohol, Ammoniac, Bicarbonates, G6-PDH, Haemoglobin, Lipase, Magnesium, US Proteins, HbA1c, RF, ASLO, CRP, µAlb
– See more
Software
• Optimized for touch screen
• Easy to use
• Intuitive
• Easy access to information
• Multilingual (French, English, Italian, etc..)
Dimensions
• Dimensions et Gross Weight : 122 x 88 x 96.5 CM – 124 KG
